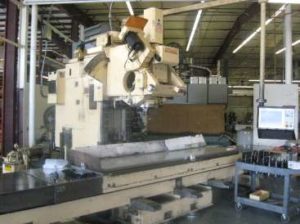

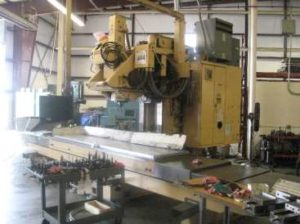

Cincinnati 20V-120

Private Message
Advert #458

additional contact options

Facebook
Twitter
Linkedin
Skype
Colorado, United States

Machine ID# 9203
Table: Table Size …………………………………………………………………… 122″ x 29.92″
Maximum Table Load ………………………………………………….. .7,000 Lbs
Travels: X-Axis Travel ……………………………………………………………… 120″
Y-Axis Travel ……………………………………………………………… 30″
Z-Axis Travel ……………………………………………………………… 24″
A-Axis Travel / B-Axis Travel ……………………………………….. +/- 29° / 29°
Spindle: Spindle Speeds Minimum – Maximum …………………………….. 20 – 3,600 RPM
Spindle Taper ……………………………………………………………… 50 Taper
Main Motor (30 min. / continuous) …………………………………. 25 / 20 HP
Rapids: Rapid Traverse (X & Y / Z) …………………………………………… 250 / 150 IPM
Cutting Feed Rate ………………………………………………………… 150 IPM
Dimensions: Floor Space (L x W x H) ……………………………………………….. 300″ x 156″ x 132″
Weight (approx.) …………………………………………………………. 44,500 Lbs
–
Additional Info.: Full Five Axis Control
Machine Retrofitted With New Servos and Centroid Control in 2007

Manufacturer Cincinnati,
Model 20V-120
Year 1989/2007

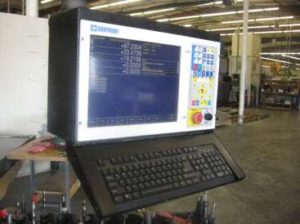

Control Centroid M 400
Condition Very Good
Location Colorado
Country US
Country United States of America
State/Province Colorado
distance: 4,599 Miles
Address Colorado, United States
